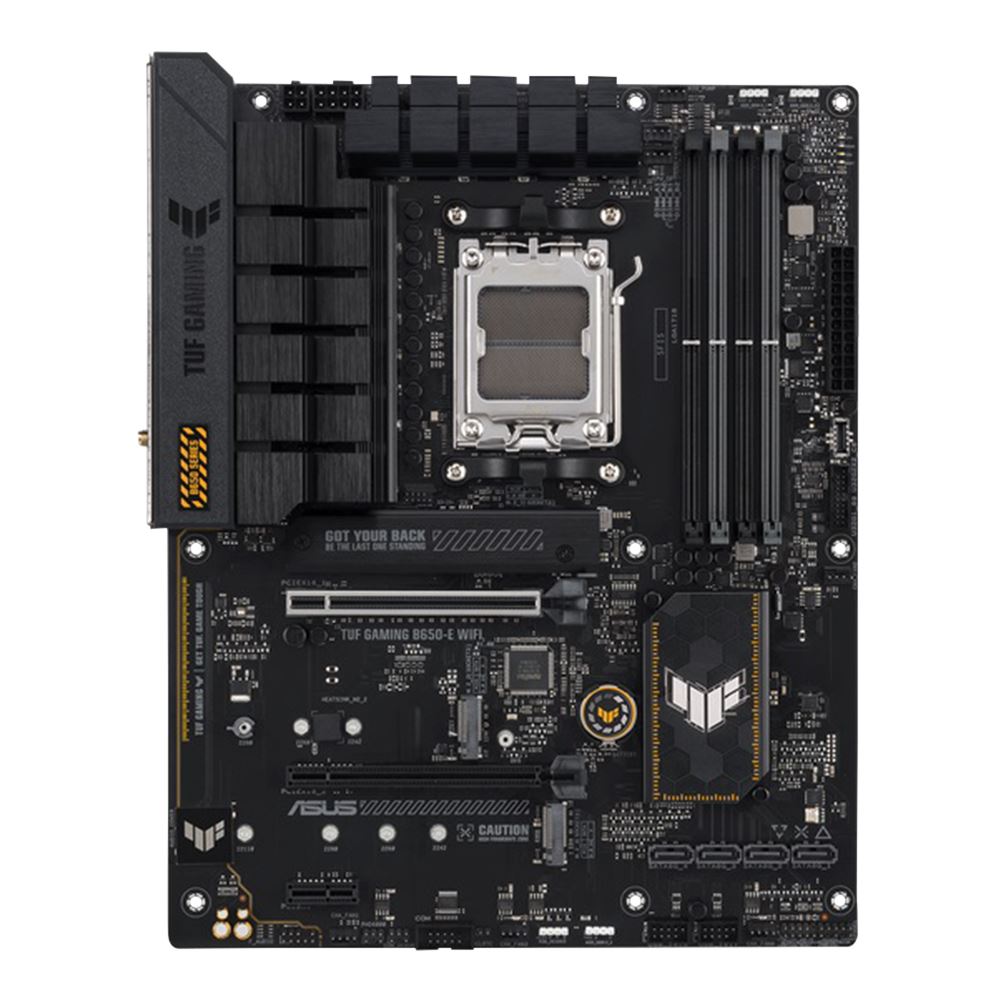

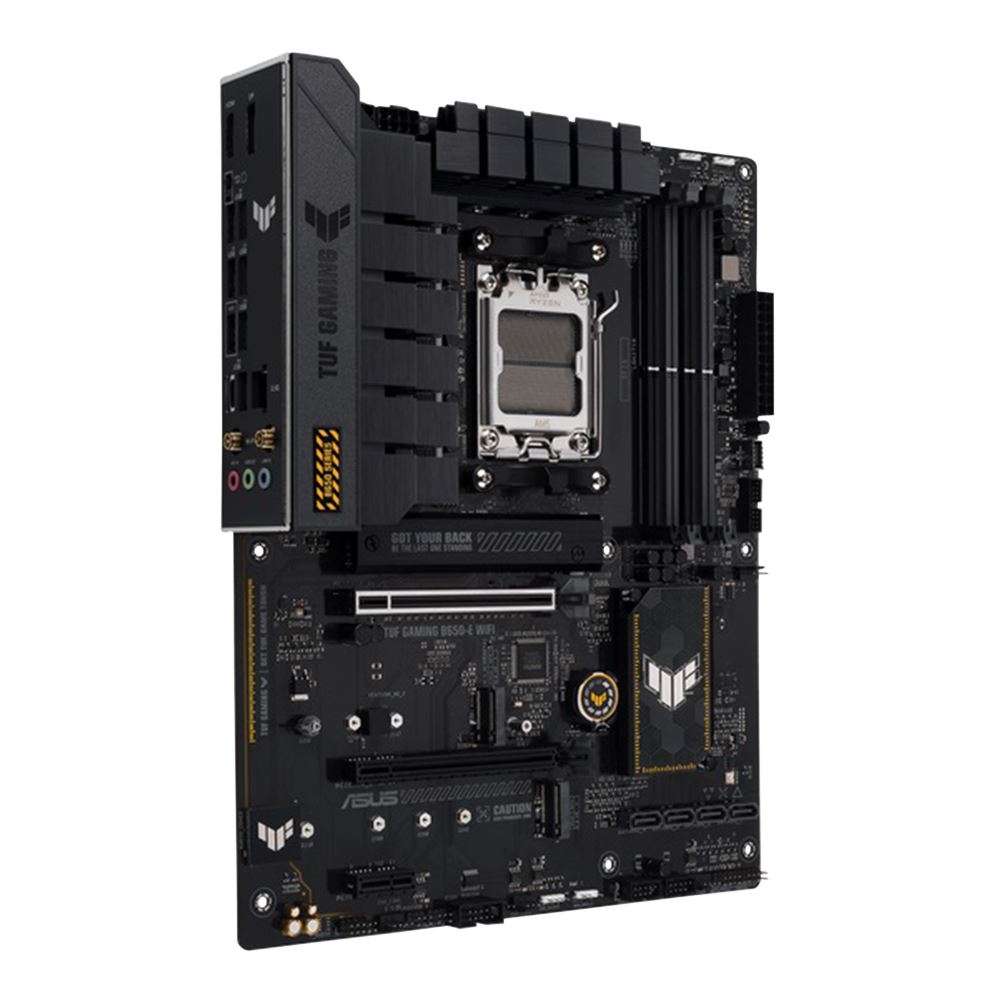

ASUS B650-E TUF Gaming WiFi AMD AM5 ATX Motherboard
ASUS B650-E TUF Gaming WiFi AMD AM5 ATX Motherboard
Couldn't load pickup availability
ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
General Specifications
- Packaging: Retail
- Chipset: AMD B650
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
- CPU Support: AMD Ryzen
- Socket Type: AM5
Memory Specifications
- ECC: Non-ECC, Non-Registered
- Memory Type: DDR5-4800, DDR5-5000, DDR5-5200
- Memory Speeds Supported: 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 MHz
- Memory Slots: 4 x 288pin DIMM
- Memory Channel Support: Dual Channel
- Max Memory Supported: 192GB
- Maximum Memory Supported Per Slot: 48GB
Video Specifications
- Onboard Graphic Chipset: Requires CPU with Integrated Graphics
Storage Specifications
- M.2 Port Type: 2242, 2260, 2280, 22110
- SATA Express: 3 x M.2 Socket 3, M Key
- SATA 6Gb/s: 4
- RAID Support: RAID 0, RAID 1, RAID 10
Audio Specifications
- Audio Channels: 7.1
Networking
- WiFi Support: Onboard WiFi
- LAN Chipset: Realtek 2.5Gb Ethernet
- LAN Speed: 10/100/1000/2500Mbps
- Wireless Technology: 802.11b/g/a, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), Bluetooth v5.3
Expansion Slots
- PCI Express 4.0 x16: 2
- PCI Express x1: 1

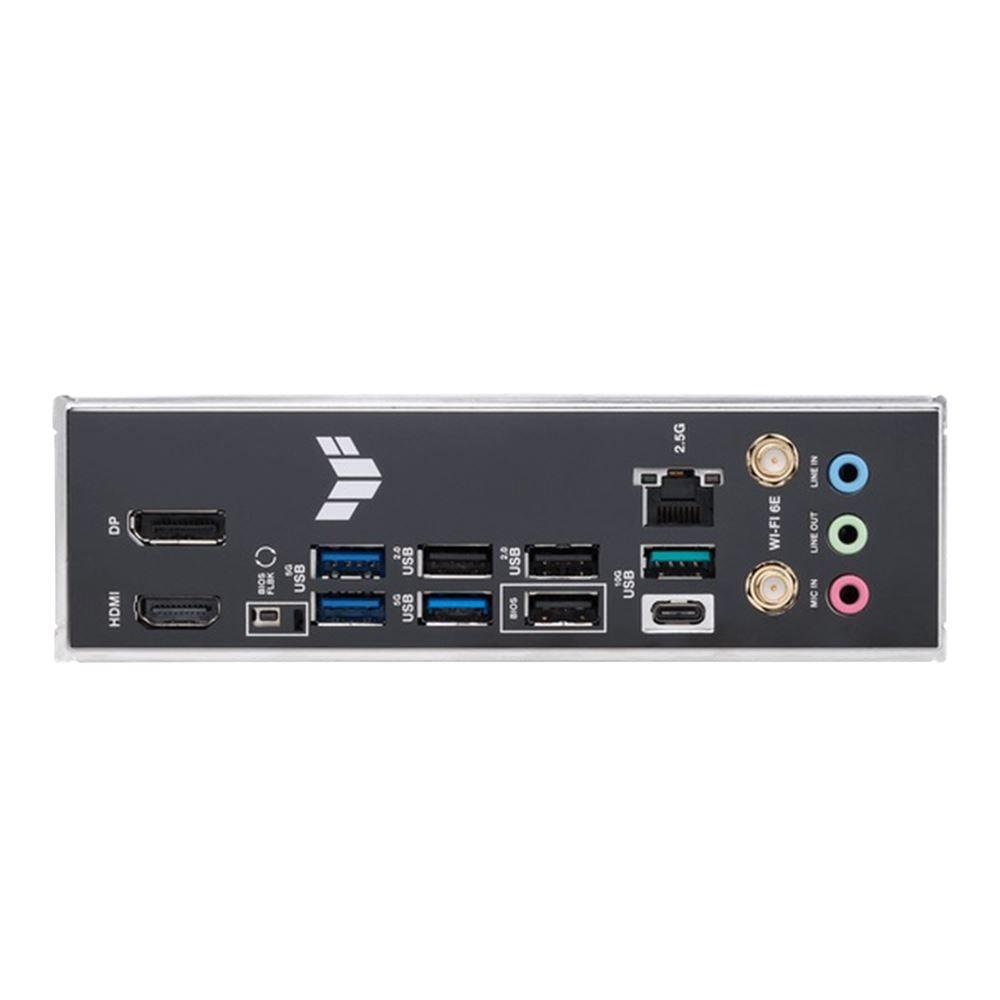

Back Panel Ports
- LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN
- Audio Ports: 1 x 3.5 mm Microphone, 1 x 3.5 mm Line-In, 1 x 3.5 mm Line-Out
- Specialty Ports: 2 x WiFi Antenna Ports
- USB 2.0: 3 x USB 2.0 (Type-A)
- USB 3.1:
- 1 x USB 3.2 (Gen 2 Type-C)
- 1 x USB 3.2 (Gen 2 Type-A)
- 3 x USB 3.2 (Gen 1 Type-A)
- Video Connectors: 1 x HDMI 2.1, 1 x DisplayPort 1.4
Internal I/O & Connectors
- Headers:
- 4 x System Fan Header
- 1 x Water Pump Header
- 2 x CPU Fan Header
- USB:
- 2 x USB 2.0 Headers (4 Ports)
- 1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
- 1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
- Power Connectors:
- 1 x 24-pin ATX Connector
- 1 x 8-pin +12 V Connector
- 1 x 4-pin +12 V Connector
Physical Specifications
- Depth: 12.00 in. (305.00 mm)
- Width: 9.60 in. (243.84 mm)
- Form Factor: ATX
Warranty
- Parts: 3 Years
- Labor: 3 Years
Package Contents

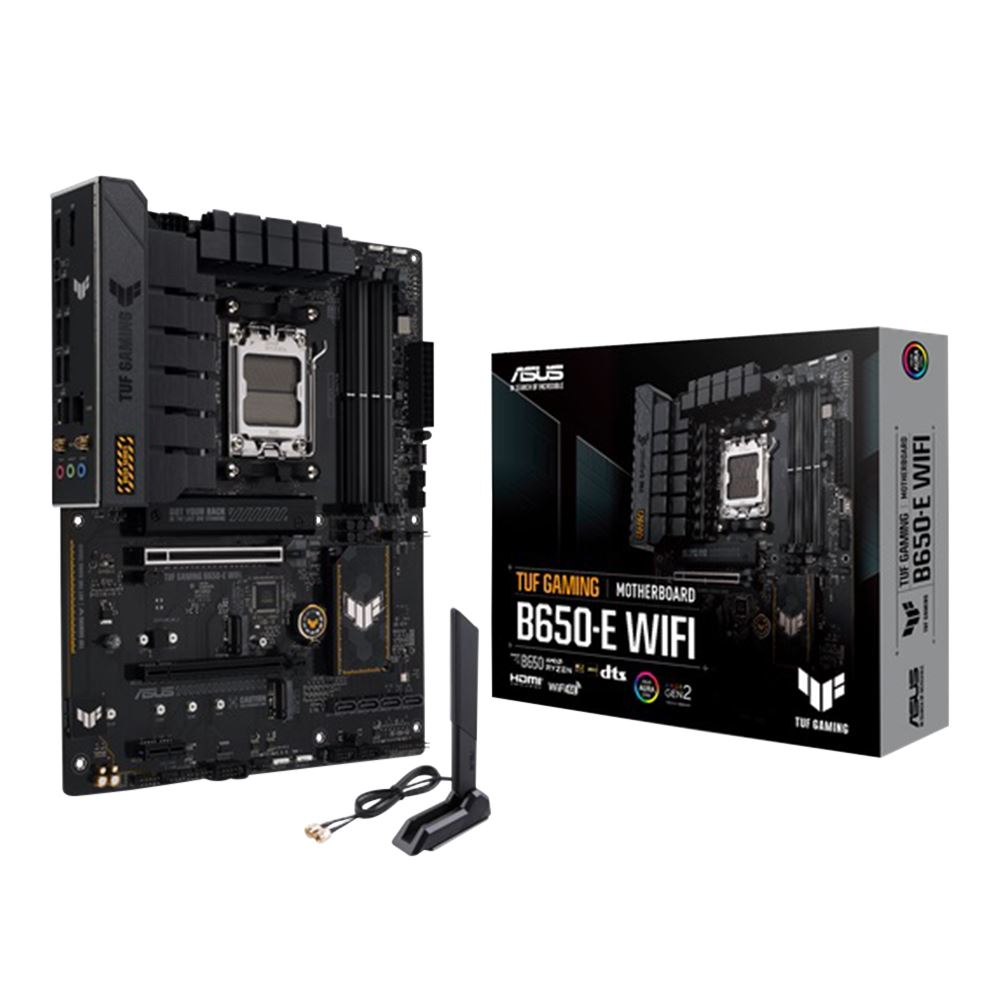

- What's in the Box: Motherboard, 2x SATA Cables, Antennas, M.2 Rubber Packages, M.2 Screws, Manual
