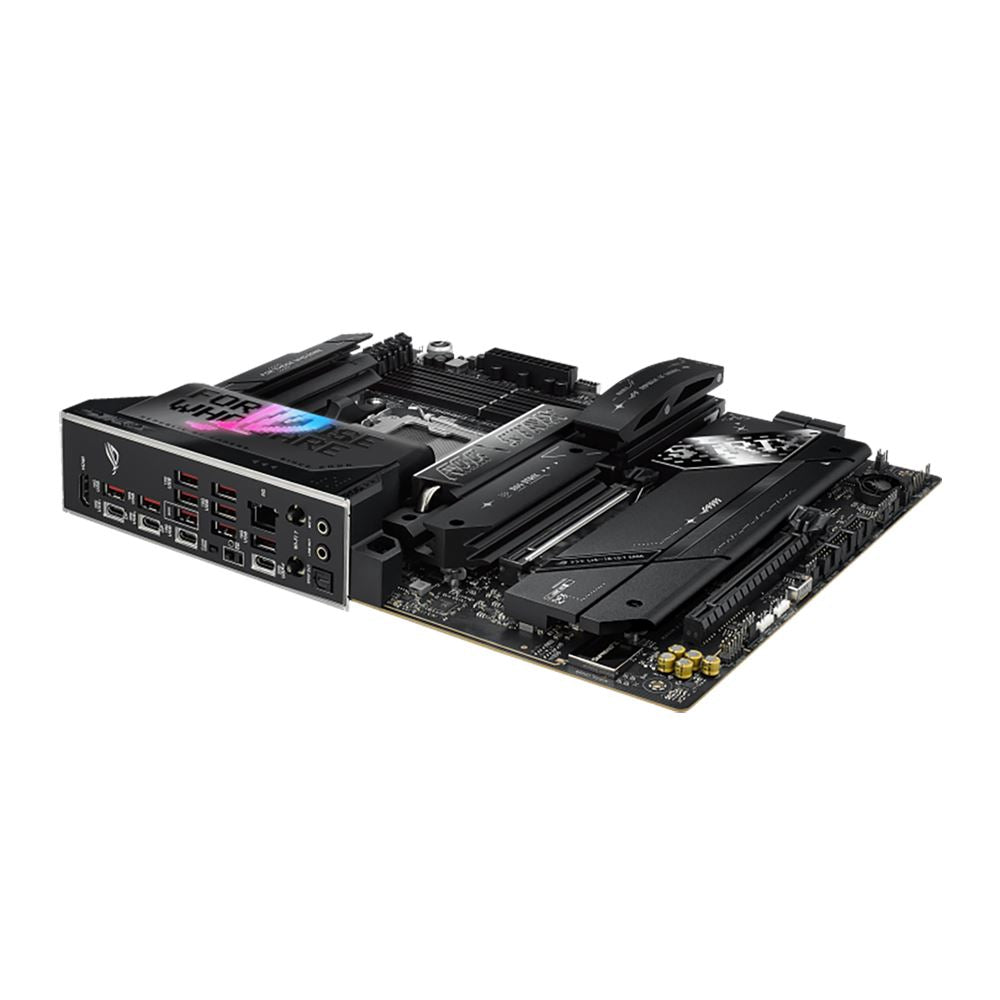

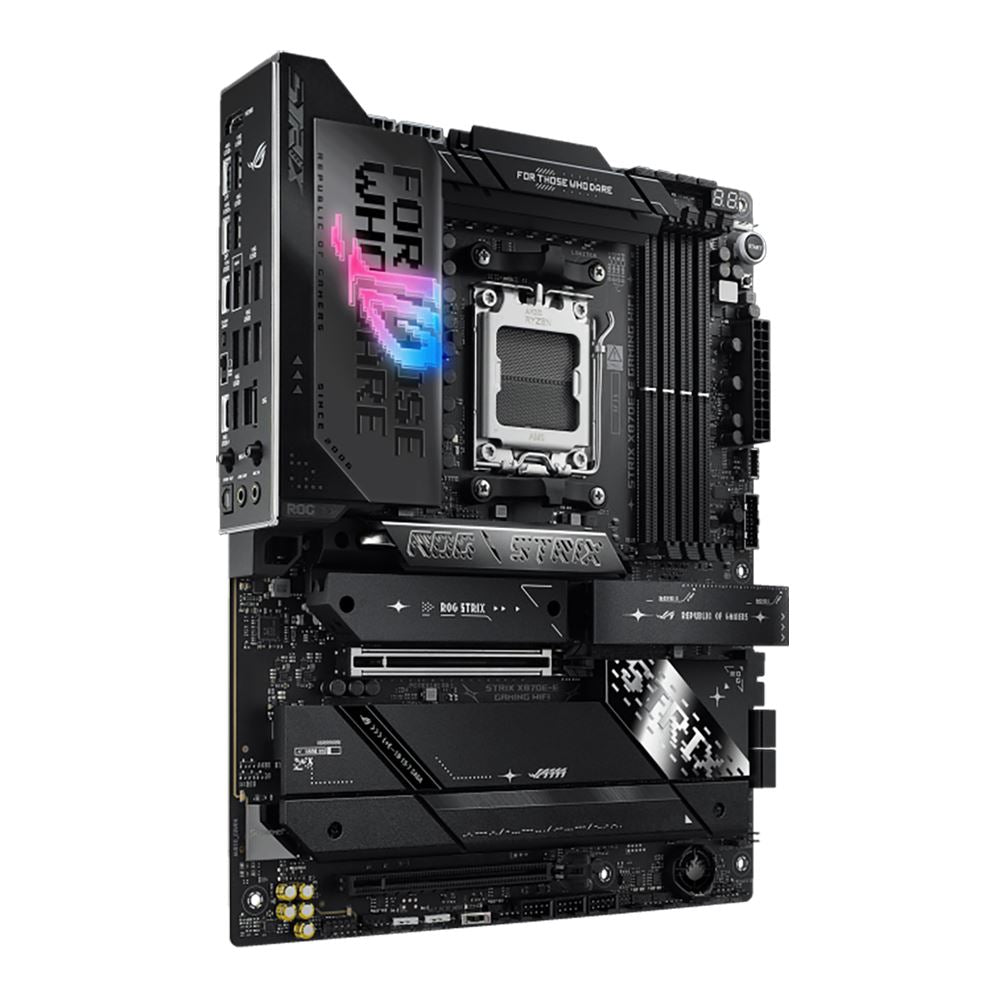

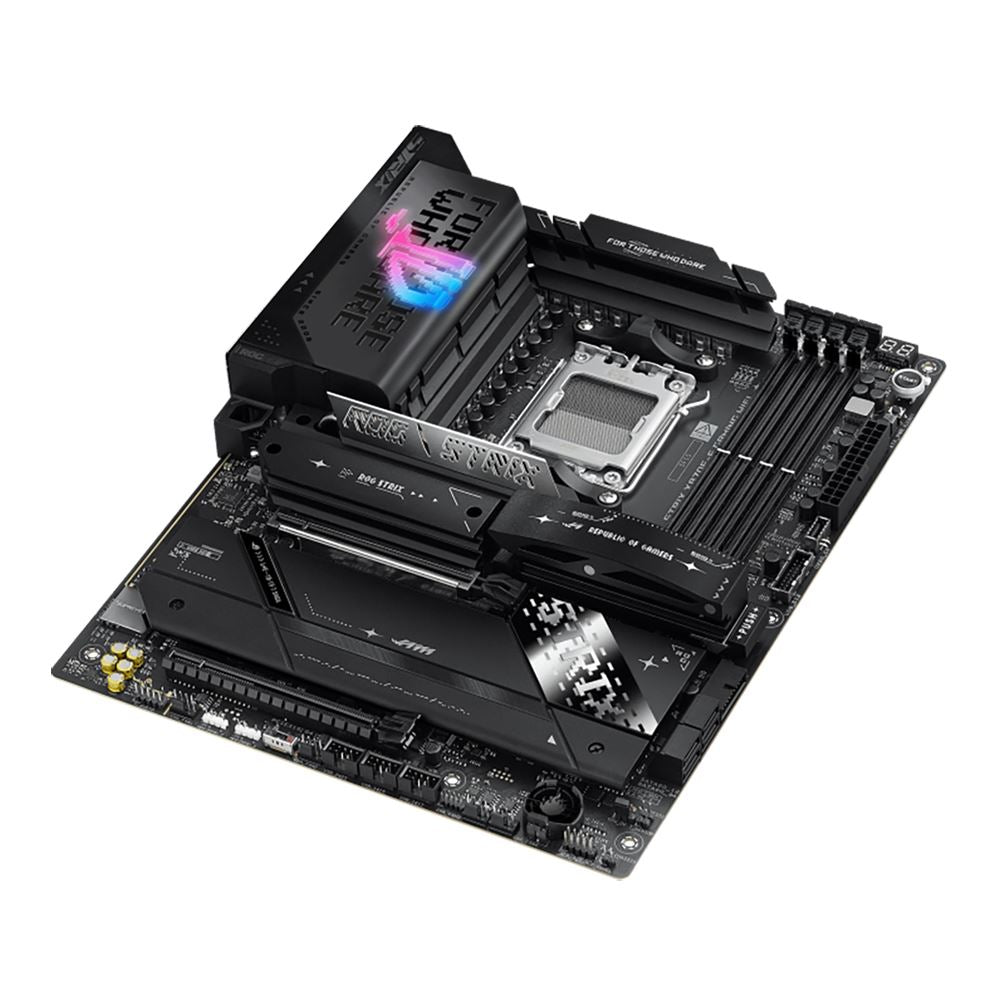

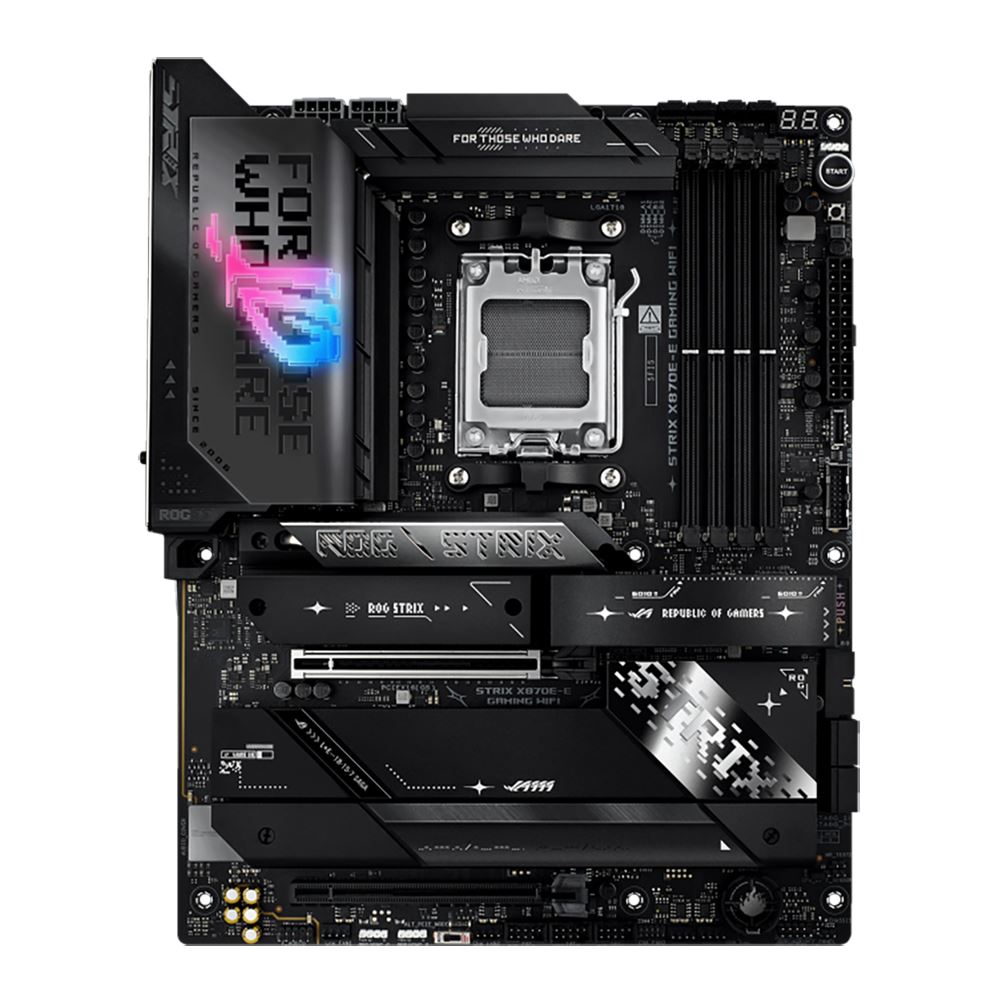

ASUS X870E-E ROG Strix Gaming WiFi AMD AM5 ATX Motherboard

The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4 Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

• Packaging: Retail
• Chipset: AMD X870E
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL, PXE
• CPU Support: AMD Ryzen
• Socket Type: AM5

• ECC: Non-ECC, Non-Registered; ECC, Non-Registered
• Memory Type: DDR5-4400, DDR5-4800, DDR5-5200
• Memory Speeds Supported: 8000+ MHz (OC)
• Memory Slots: 4 x 288pin DIMM
• Memory Channel Support: Dual Channel
• Max Memory Supported: 192GB
• Maximum Memory Supported Per Slot: 48GB

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

• M.2 Port Type: 2242, 2260, 2280, 22110
• SATA Express: 5 x M.2 Socket 3, M key
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10

• Audio Chipset: ROG SupremeFX ALC4080
• Audio Channels: 7.1

• WiFi Support: Onboard WiFi
• LAN Chipset: Realtek 5Gb Ethernet
• LAN Speed: 100/1000/2500/5000Mbps
• Wireless Technology: Bluetooth v5.4, WiFi 7 (802.11be)

• PCI Express 4.0 x16: 1
• PCI Express 5.0 x16: 1

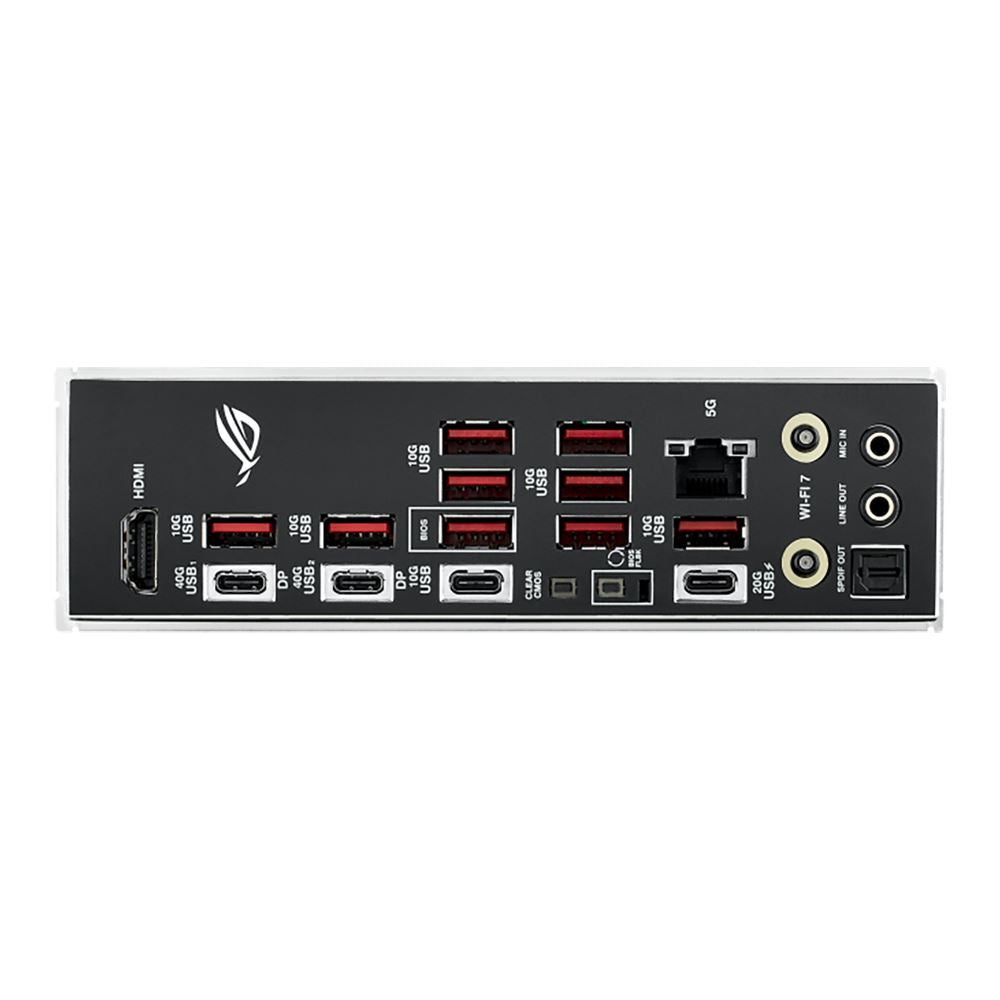

• LAN Ports: 1 x 100/1000/2500/5000 RJ-45 LAN
• Audio Ports:
  • 1 x 3.5 mm Microphone
  • 1 x 3.5 mm Line-Out
• Specialty Ports: 2 x WiFi Antenna Ports
• USB 3.1:
  • 1 x USB 3.2 (Gen 2 Type-C)
  • 1 x USB 3.2 (Gen 2x2 Type-C)
  • 2 x USB4 (Type-C 40 Gb/s)
  • 9 x USB 3.2 (Gen 2 Type-A)
• Video Connectors: 1 x HDMI 2.1
• Digital Audio: 1 x Optical

• Headers:
  • 1 x Water Pump Header
  • 2 x CPU Fan Header
  • 5 x System Fan Header
• USB:
  • 3 x USB 2.0 Headers (6 Ports)
  • 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
  • 1 x USB 3.2 Gen 2x2 Type-C Header (1 Port)
• Other I/O: 3 x RGB LED connectors
• Power Connectors:
  • 1 x 24-pin ATX Connector
  • 2 x 8-pin +12 V Connector

• Depth: 12.00 in. (305.00 mm)
• Width: 9.60 in. (243.84 mm)
• Form Factor: ATX

• Parts: 3 Years
• Labor: 3 Years

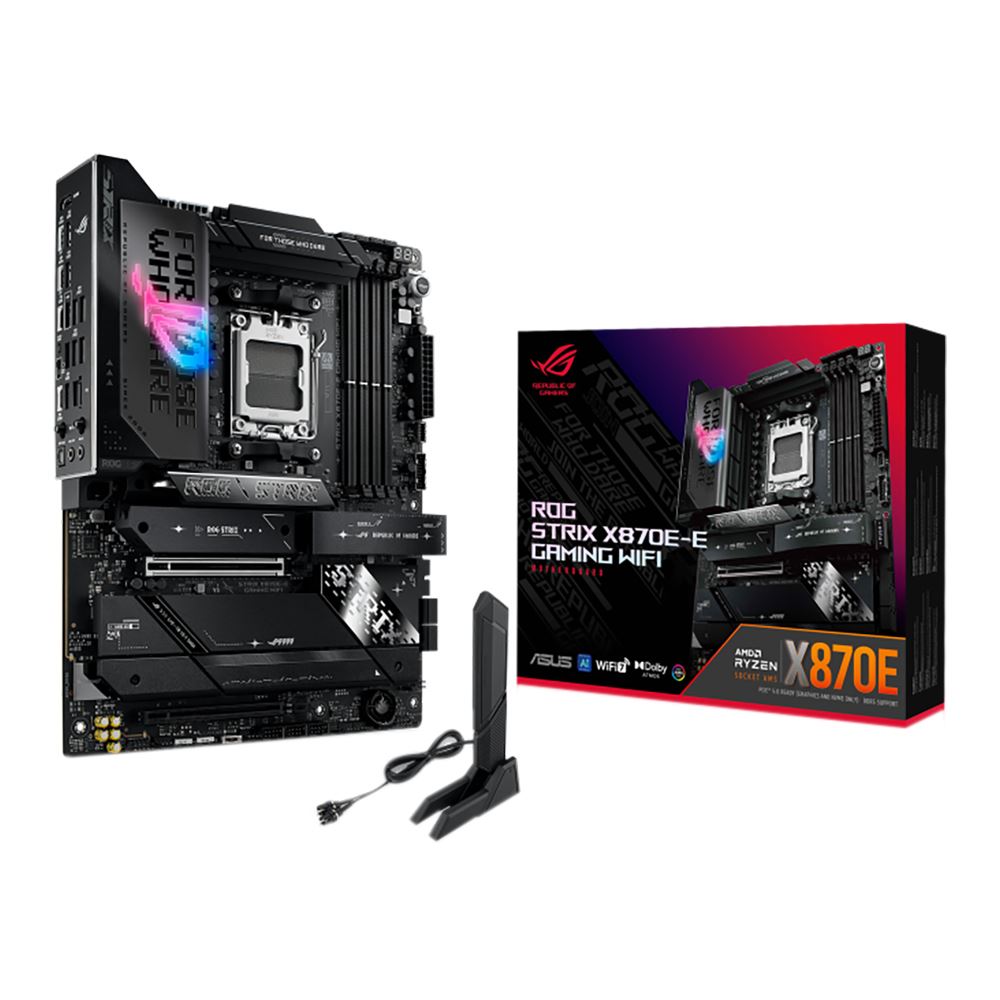

• What's in the Box:
  • 2x SATA 6Gb/s cables
  • Thermal pad for M.2 22110
  • ASUS Wi-Fi moving antennas
  • Cable ties pack
  • M.2 Q-Latch package
  • 2x M.2 Q-Slides
  • ROG key chain
  • ROG Strix stickers
  • 5x M.2 Rubbers
  • Quick start guide
