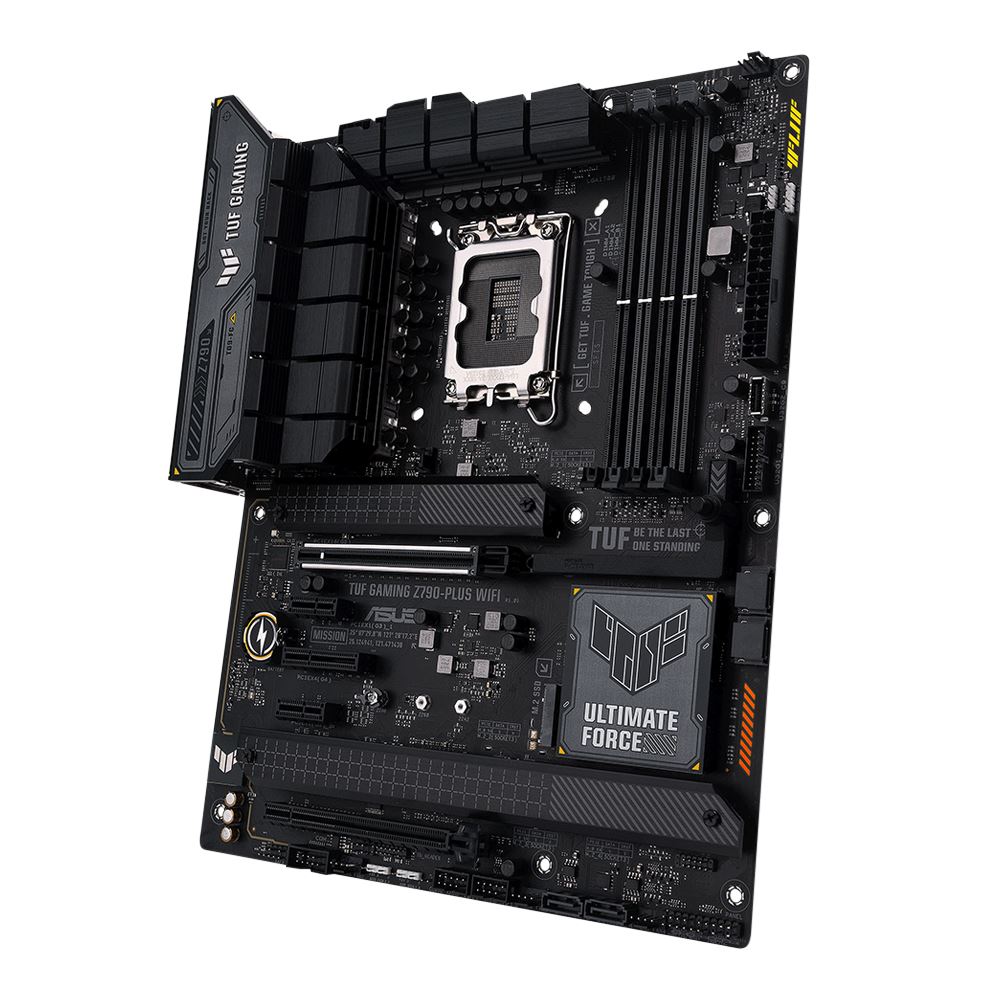

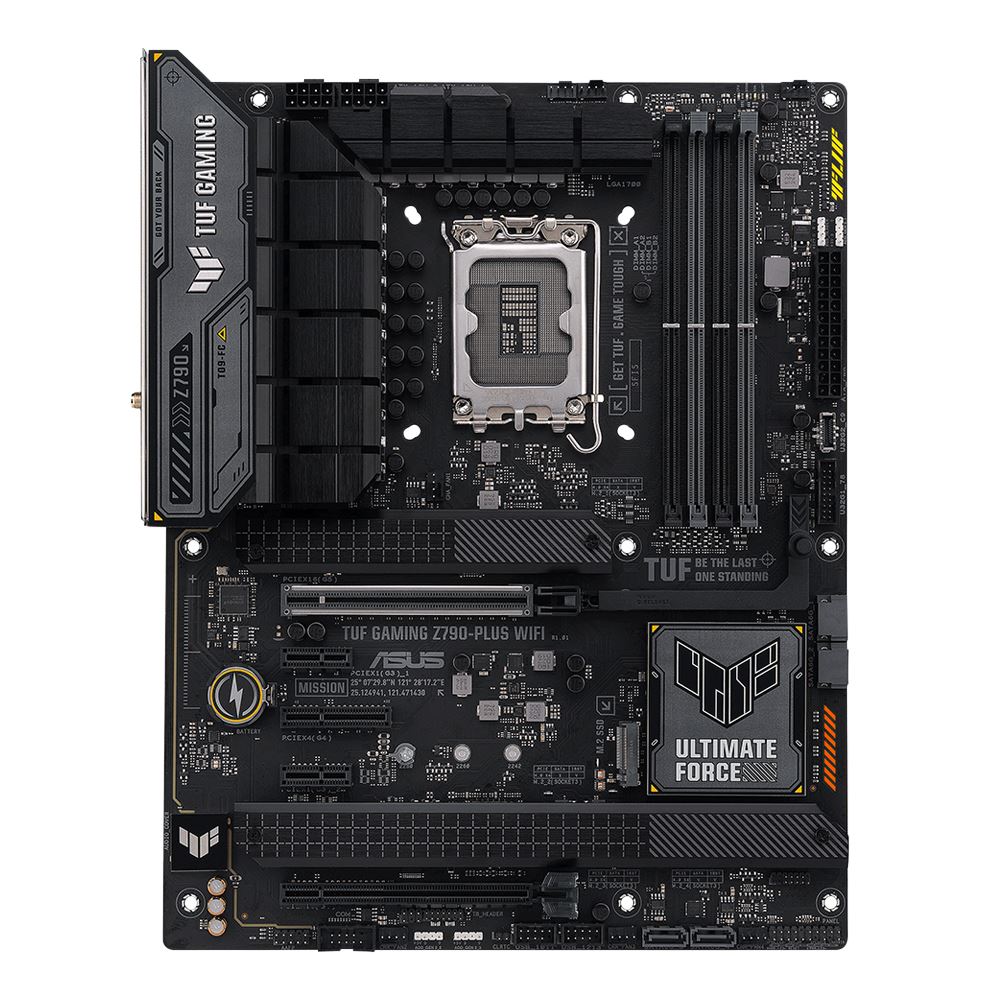

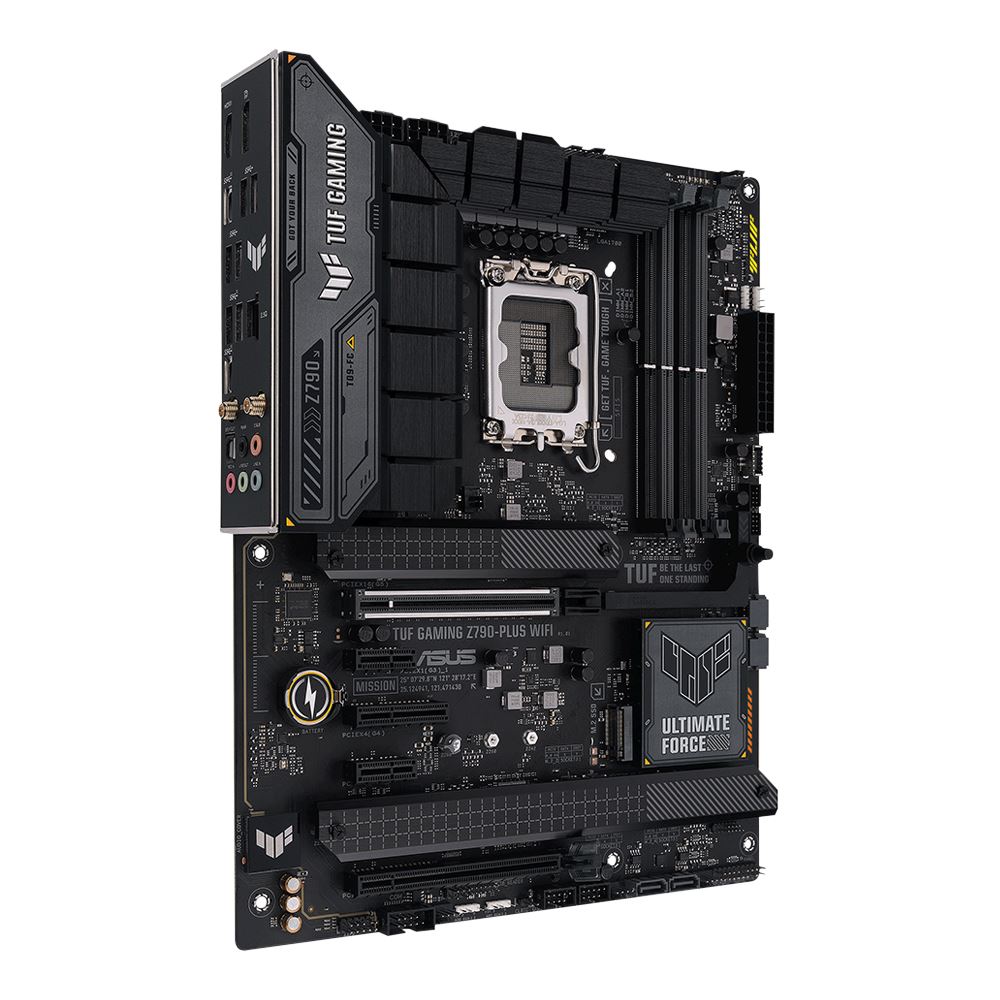

ASUS Z790-Plus TUF Gaming WiFi DDR5 Intel LGA 1700 ATX Motherboard

TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and honeycomb design elements to reflect the dependability and stability that defines the TUF GAMING series.

• Packaging: Retail
• Chipset: Intel Z790
• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL, PXE
• CPU Support: Intel Core i9, Core i7, Core i5, Core i3, Celeron, Pentium
• Socket Type: LGA 1700

• ECC: Non-ECC, Non-Registered
• Memory Type: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600
• Memory Speeds Supported: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
• Memory Slots: 4 x 288pin DIMM
• Memory Channel Support: Dual Channel
• Max Memory Supported: 128GB
• Maximum Memory Supported Per Slot: 32GB
• Supported Memory Technologies: Non-ECC Memory Supported

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

• M.2 Port Type: 2242, 2260, 2280, 22110
• SATA Express: 4 x M.2 Socket 3, M Key
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10

• Audio Chipset: Realtek S1220A
• Audio Channels: 7.1

• WiFi Support: Onboard WiFi
• LAN Chipset: Intel 2.5Gb Ethernet
• LAN Speed: 10/100/1000/2500Mbps
• Wireless LAN Chipset: Intel 2x2 Wi-Fi 6
• Wireless Technology: 802.11b/g/a, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), Bluetooth v5.2

• PCI Express 4.0 x16: 1
• PCI Express 5.0 x16: 1
• PCI Express x1: 2

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN
• Audio Ports:
  • 1 x 3.5 mm Microphone
  • 1 x 3.5 mm Line-In
  • 1 x 3.5 mm Rear Speaker
  • 1 x 3.5 mm Subwoofer
  • 1 x 3.5 mm Line-Out
• USB 3.1:
  • 4 x USB 3.2 (Gen 1 Type-A)
  • 1 x USB 3.2 (Gen 2 Type-C)
  • 1 x USB 3.2 (Gen 2x2 Type-C)
  • 2 x USB 3.2 (Gen 2 Type-A)

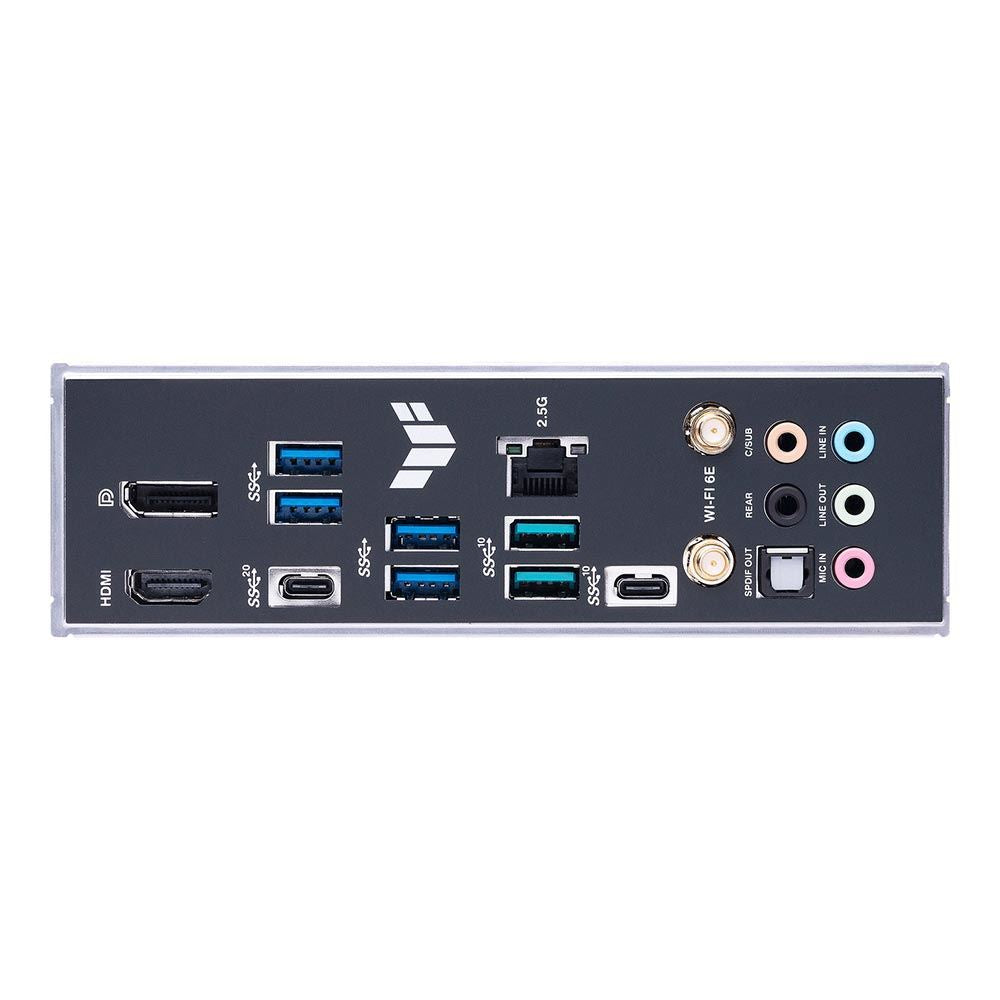

• Video Connectors: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• Specialty Ports: 2 x WiFi Antenna Ports
• Digital Audio: 1 x Optical

• Headers:
  • 4 x System Fan Header
  • 1 x Water Pump Header
  • 2 x CPU Fan Header
• USB:
  • 2 x USB 2.0 Headers (4 Ports)
  • 1 x USB 3.2 Gen 1 Type-A Header (2 Ports)
  • 1 x USB 3.2 Gen 2 Type-C Header (1 Port)
• Power Connectors:
  • 1 x 24-pin ATX Connector
  • 1 x 8-pin +12 V Connector
  • 1 x 4-pin +12 V Connector

• Depth: 12.00 in. (305.00 mm)
• Width: 9.60 in. (243.84 mm)
• Form Factor: ATX

• Parts: 3 Years
• Labor: 3 Years

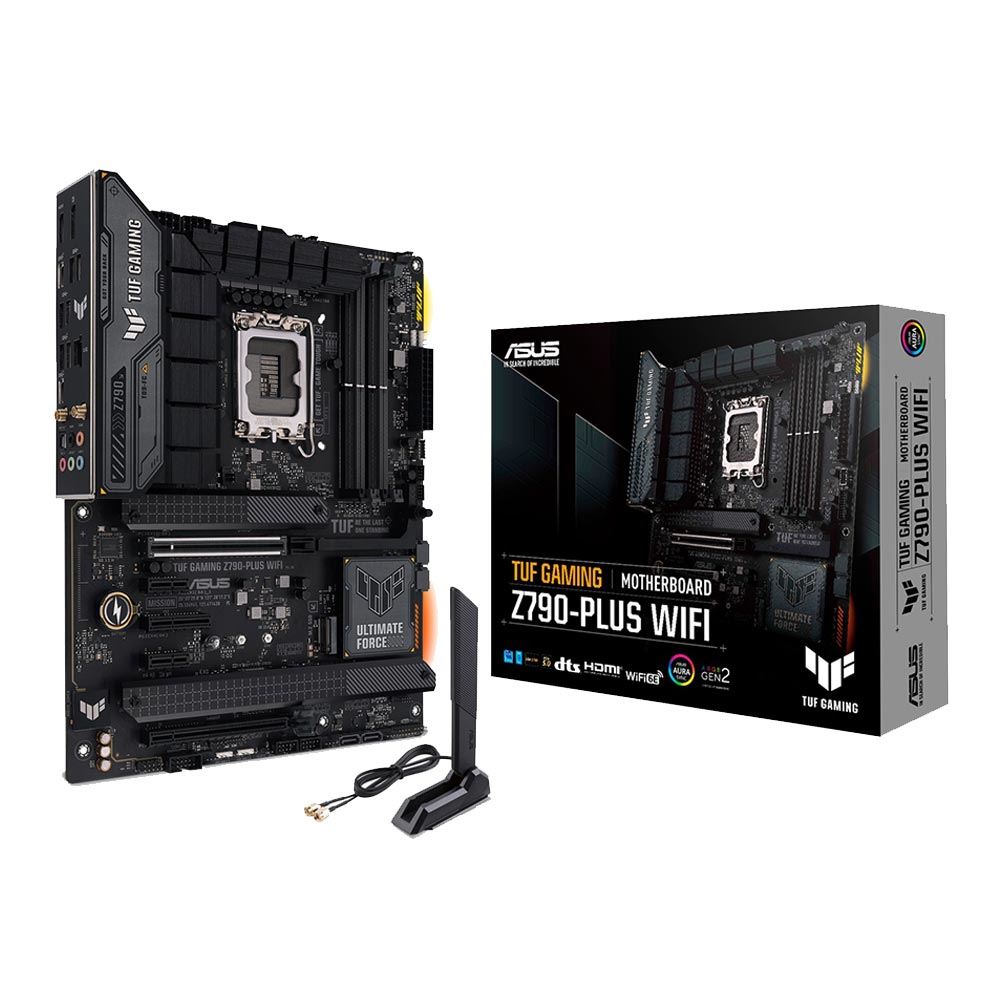

• What's in the Box: Motherboard, 2x SATA Cables, Antenna, TUF Gaming Stickers, M.2 Rubber Packages, M.2 Screws, Manual
