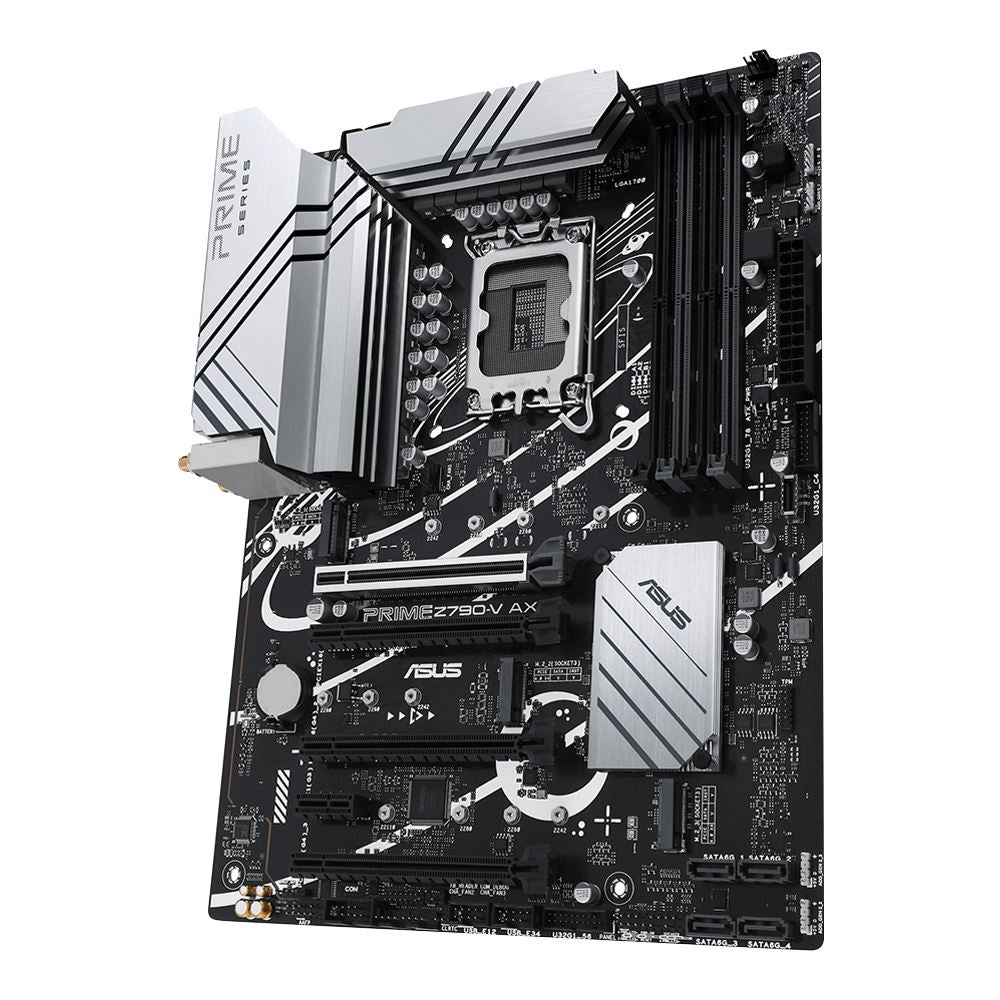

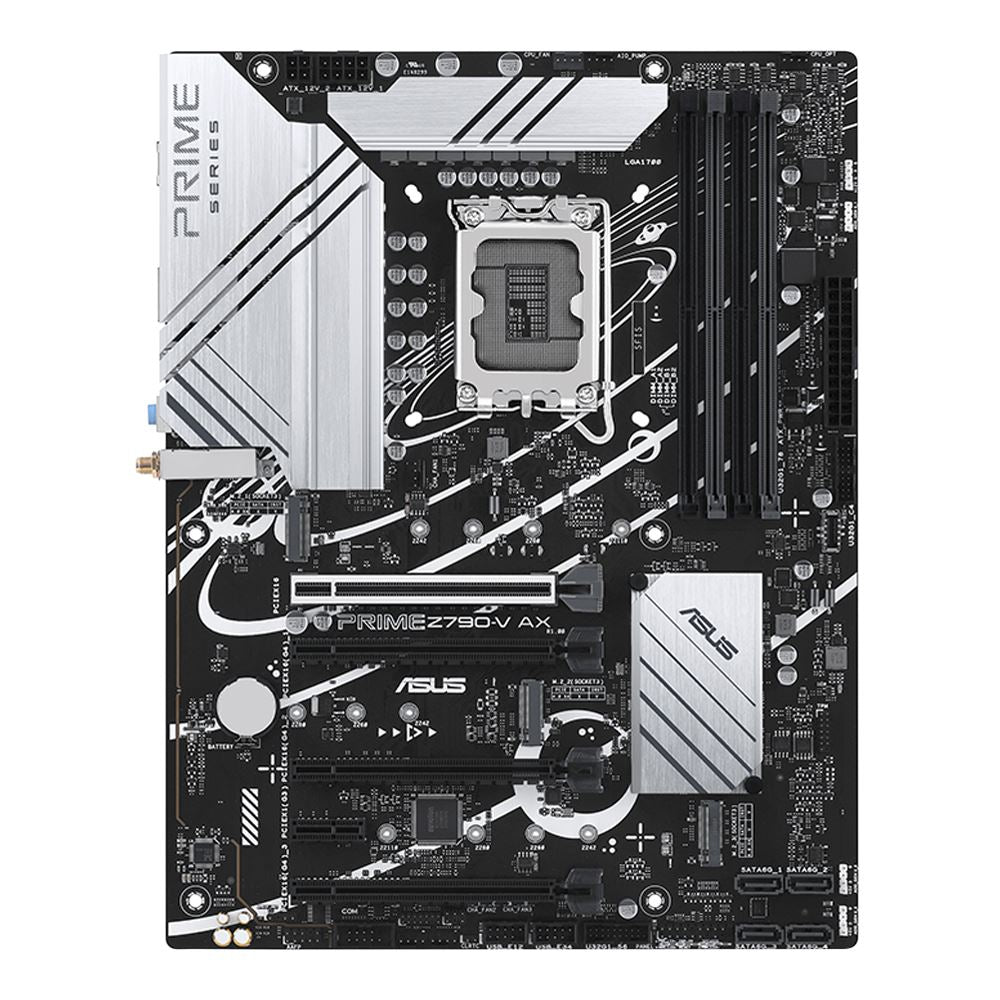

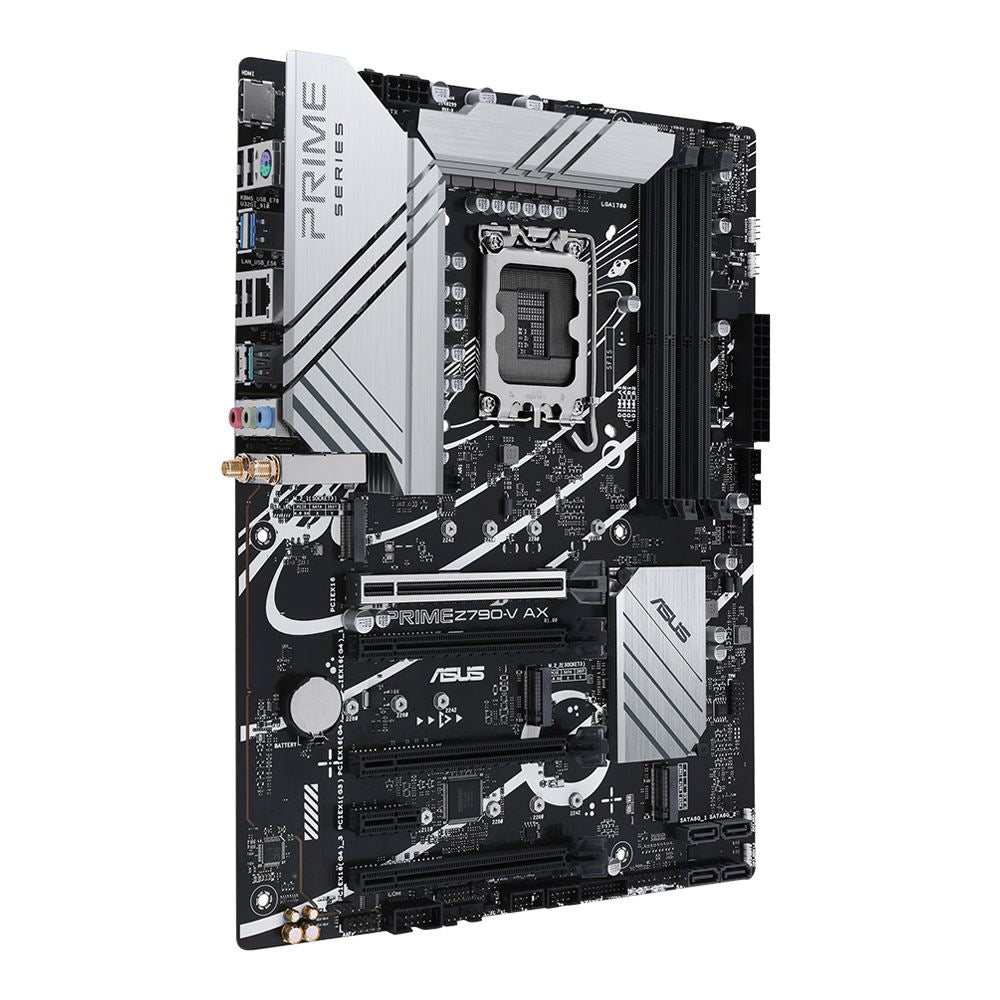

ASUS Z790-V Prime AX Intel LGA 1700 ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-V AX provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

• Packaging: Retail
• Chipset: Intel Z790
• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL, PXE
• CPU Support: Intel Core i9, Core i7, Core i5, Core i3, Celeron, Pentium
• Socket Type: LGA 1700

• ECC: Non-ECC, Non-Registered
• Memory Type: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600
• Memory Speeds Supported: 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
• Memory Slots: 4 x 288pin DIMM
• Memory Channel Support: Dual Channel
• Max Memory Supported: 192GB
• Maximum Memory Supported Per Slot: 48GB

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

• M.2 Port Type: 2242, 2260, 2280, 22110
• SATA Express: 3 x M.2 Socket 3, M Key
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10

• Audio Channels: 7.1

• WiFi Support: Onboard WiFi
• LAN Chipset: Realtek 1Gb Ethernet
• LAN Speed: 10/100/1000Mbps
• Wireless Technology: 802.11b/g/a, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), Bluetooth v5.3

• PCI Express 4.0 x16: 3
• PCI Express 5.0 x16: 1
• PCI Express x1: 1

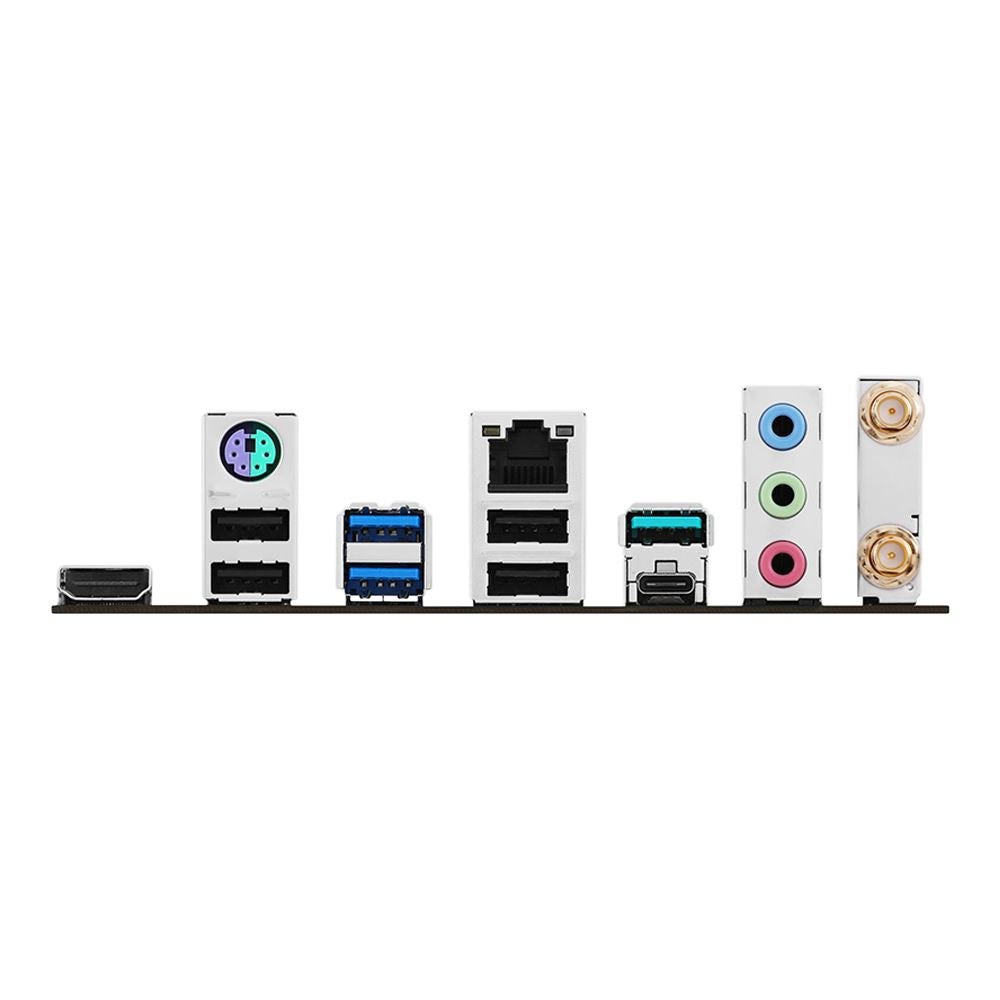

• Legacy Ports: 1 x PS/2
• LAN Ports: 1 x 10/100/1000 RJ-45 LAN
• Audio Ports:
  • 1 x 3.5 mm Microphone
  • 1 x 3.5 mm Line-In
  • 1 x 3.5 mm Line-Out
• USB 2.0: 4 x USB 2.0 (Type-A)
• USB 3.1:
  • 1 x USB 3.2 (Gen 2x2 Type-C)
  • 1 x USB 3.2 (Gen 2 Type-A)
  • 2 x USB 3.2 (Gen 1 Type-A)
• Video Connectors: 1 x HDMI 2.1
• Specialty Ports: 2 x WiFi Antenna Ports

• Headers:
  • 1 x Water Pump Header
  • 3 x System Fan Header
  • 2 x CPU Fan Header
• USB:
  • 2 x USB 2.0 Headers (4 Ports)
  • 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
  • 1 x USB 3.2 Gen 2 Type-C Header (1 Port)
• Power Connectors:
  • 1 x 24-pin ATX Connector
  • 1 x 8-pin +12 V Connector
  • 1 x 4-pin +12 V Connector

• Depth: 12.00 in. (305.00 mm)
• Width: 9.20 in. (234.00 mm)
• Form Factor: ATX

• Parts: 3 Years
• Labor: 3 Years

• What's in the Box: Motherboard, 2x SATA Cables, Antennas, I/O Shield, M.2 Screws, Manual
