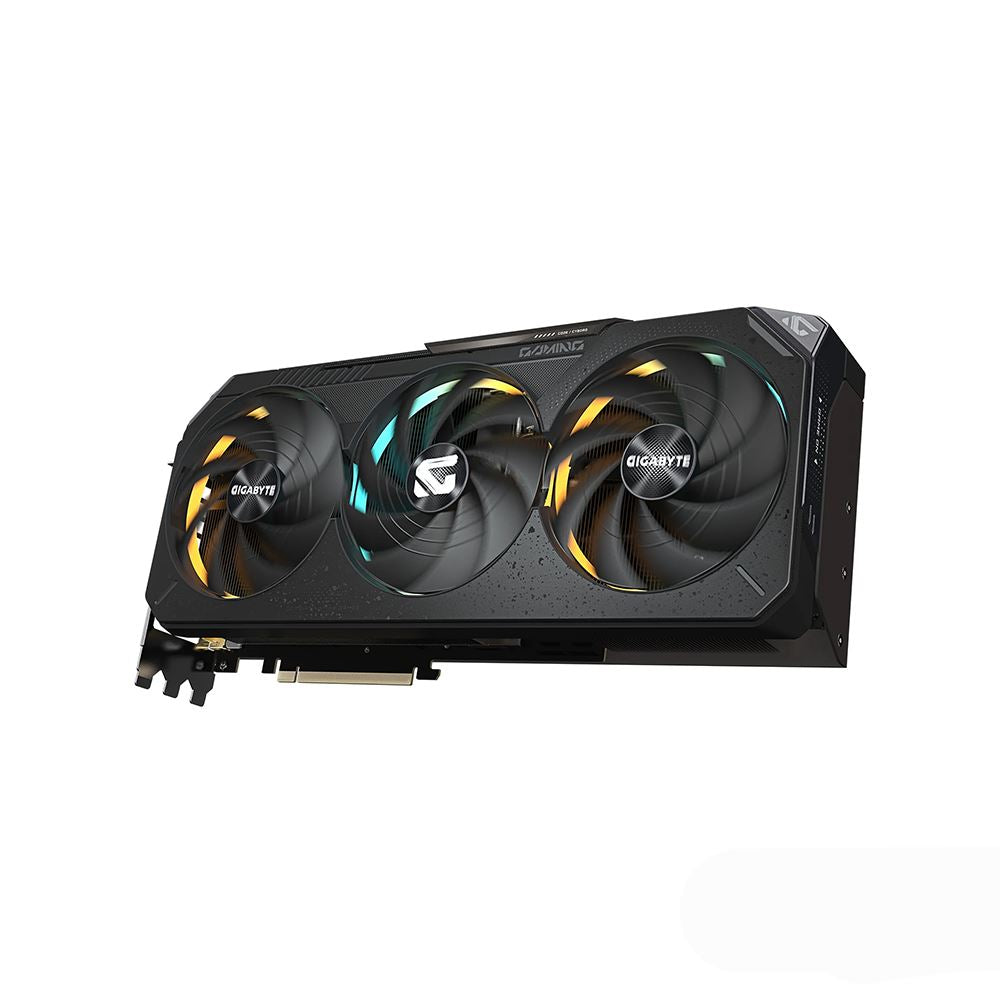

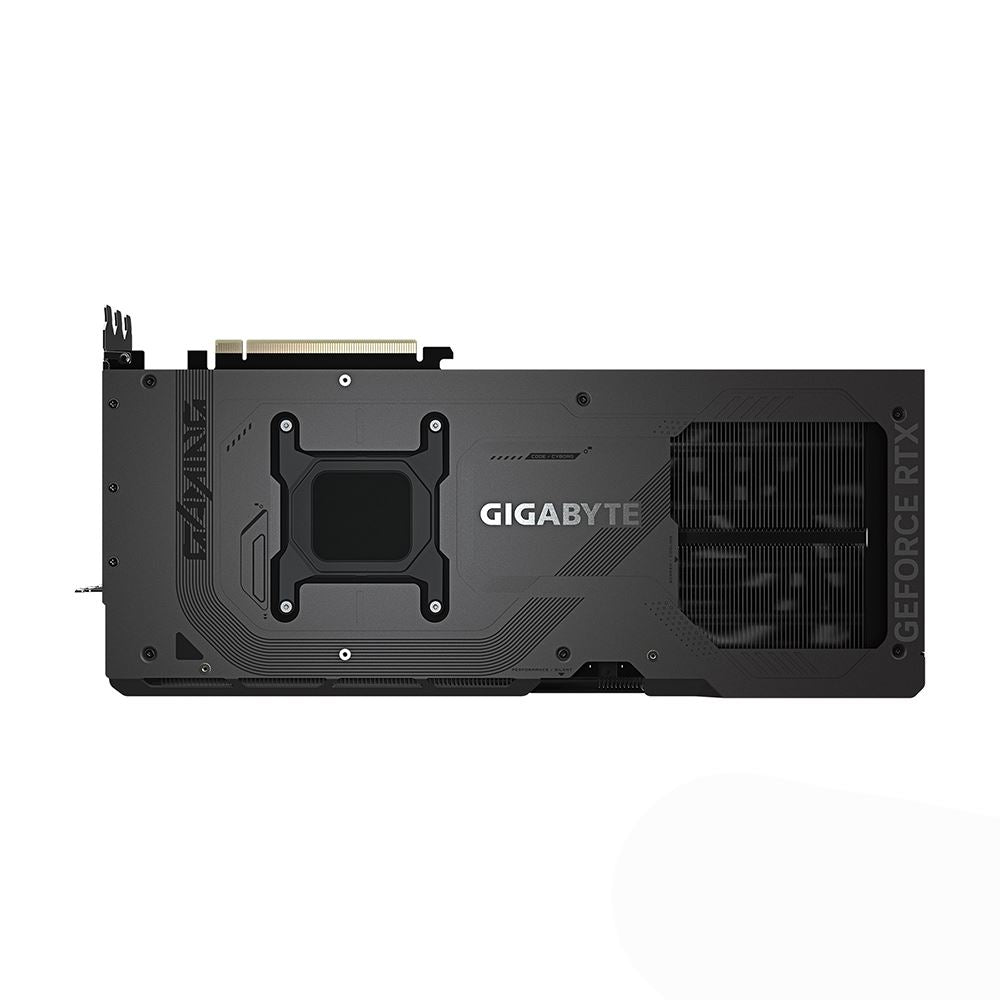

Gigabyte NVIDIA GeForce RTX 5090 Gaming OC 32GB GDDR7 Graphics Card
Gigabyte NVIDIA GeForce RTX 5090 Gaming OC 32GB GDDR7 Graphics Card
Couldn't load pickup availability
Dominate next-gen gaming, complex local AI model execution, and intense creative pipelines with the Gigabyte NVIDIA GeForce RTX 5090 Gaming OC 32G. Built on the groundbreaking NVIDIA Blackwell architecture, this card leverages fifth-generation Tensor Cores, fourth-generation Ray Tracing Cores, and massive GDDR7 memory speeds to deliver unprecedented system rendering power.
🟢 Engineered for Extreme Computing
Equipped with 21,760 CUDA Cores and a colossal 32GB of GDDR7 memory driving a ultra-wide 512-bit bus, this graphics card effortlessly crushes high-fidelity 4K/8K graphics processing and deep learning applications.
Advanced Thermal & Structural Engineering
-
🦅
WINDFORCE Dynamic Cooling & Hawk Fans Features three unique alternate-spinning Hawk Fans inspired by eagle wing aerodynamics, producing a 53.6% increase in static air pressure. Complemented by 3D Active passive cooling and Graphene Nano Lubrication to extend bearing life by up to 2.1x.
-
❄️
Vapor Chamber & Server-Grade Thermal Gel An oversized copper vapor chamber directly contacts the GPU and VRAM cores. Combined with high-deformity, server-grade thermal conductive gel instead of traditional pads, ensuring consistent structural contact and rapid thermal dissipation.
-
⚡
Dual BIOS & Ultra-Durable Components Toggle physically between Performance (Default) and Silent BIOS modes. Built with top-tier metal chokes, low-ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs to sustain extreme overclocking demands.
Deep-Dive Technical Specifications
| GPU Architecture Specs | Data Value |
|---|---|
| Graphics Processing Unit | NVIDIA GeForce RTX 5090 |
| GPU Architecture | NVIDIA Blackwell (50-Series) |
| CUDA Cores | 21,760 |
| Core Clock Speed (Boost) | 2550 MHz (Reference: 2407 MHz) |
| Memory Size & Type | 32GB GDDR7 |
| Memory Clock / Bus Width | 28 Gbps / 512-bit |
| Bus Interface Type | PCI Express 5.0 x16 |

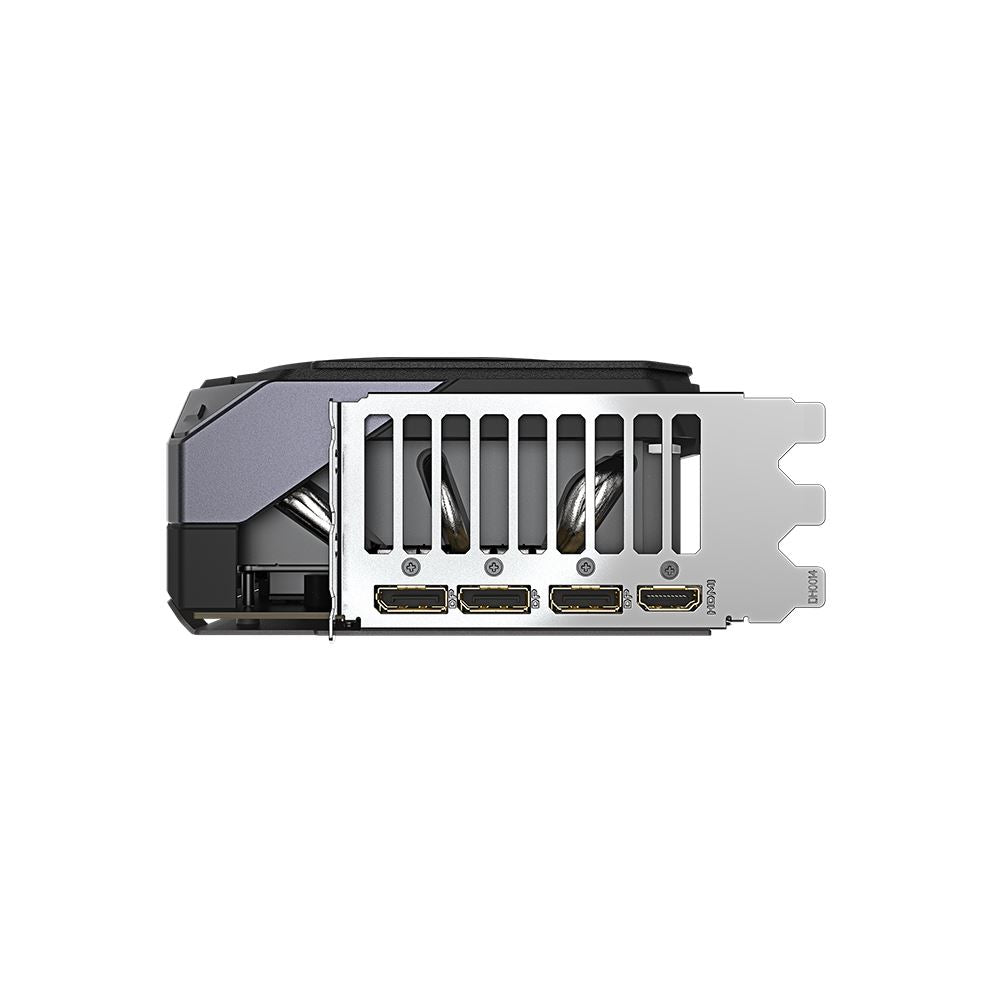

| Display Connectors | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Digital Max Resolution | 7680 x 4320 (Up to 4 monitors) |
| Thermal Design Power (TDP) | 430W (Peak draw limits can scale higher) |
| Power Connector Requirement | 1x 16-Pin (12V-2x6) PCIe Connector |
| Recommended System Power | 1000W (Min PSU requirement) |
| Physical Dimensions | L=342mm, W=152mm, H=70mm (3.5 Slots) |

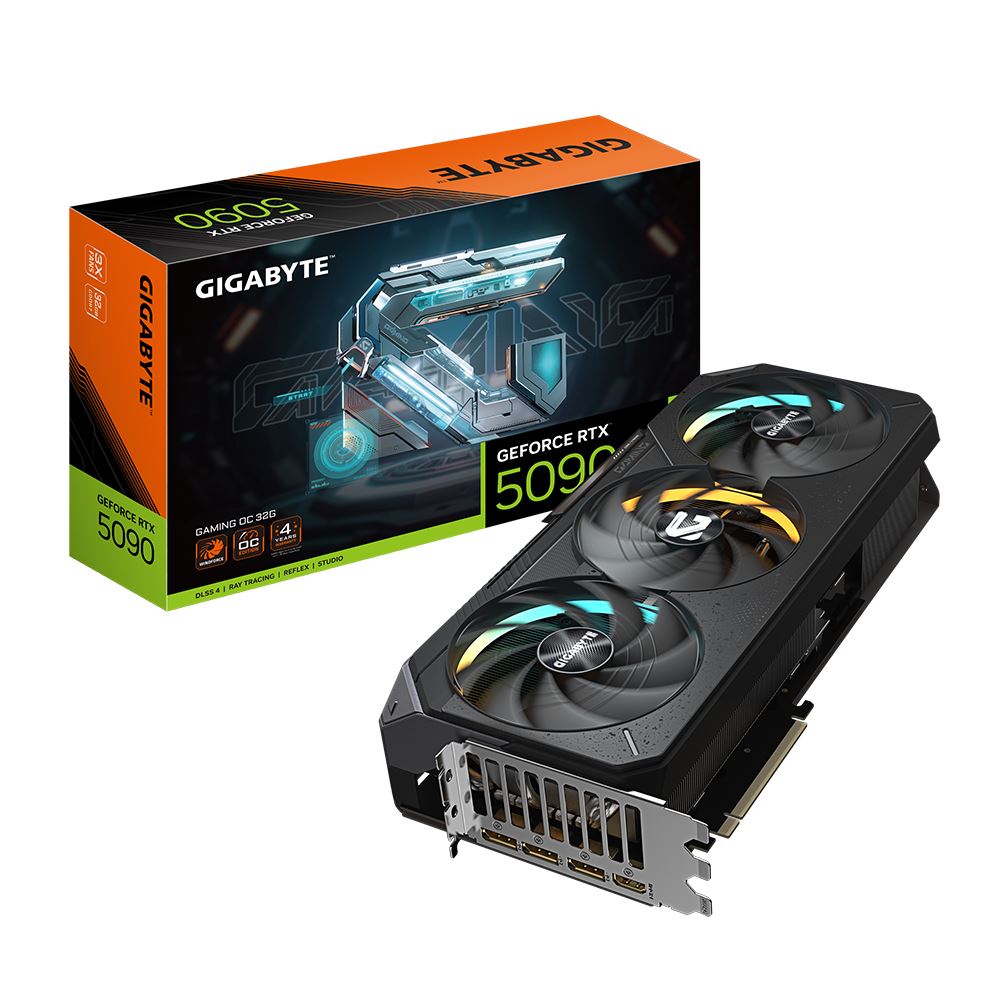

| Included In-Box Accessories | 12V-2x6 to 4x PCIe 8-pin adapter, Versatile Anti-Sag GPU Holder |
Disclaimer: Due to the 3.5-slot height (70mm) and 342mm physical card length, please verify your chassis internal dimensions and CPU cooler clearances before ordering. An ATX 3.1 power supply with a native 12V-2x6 power connector is highly recommended.
