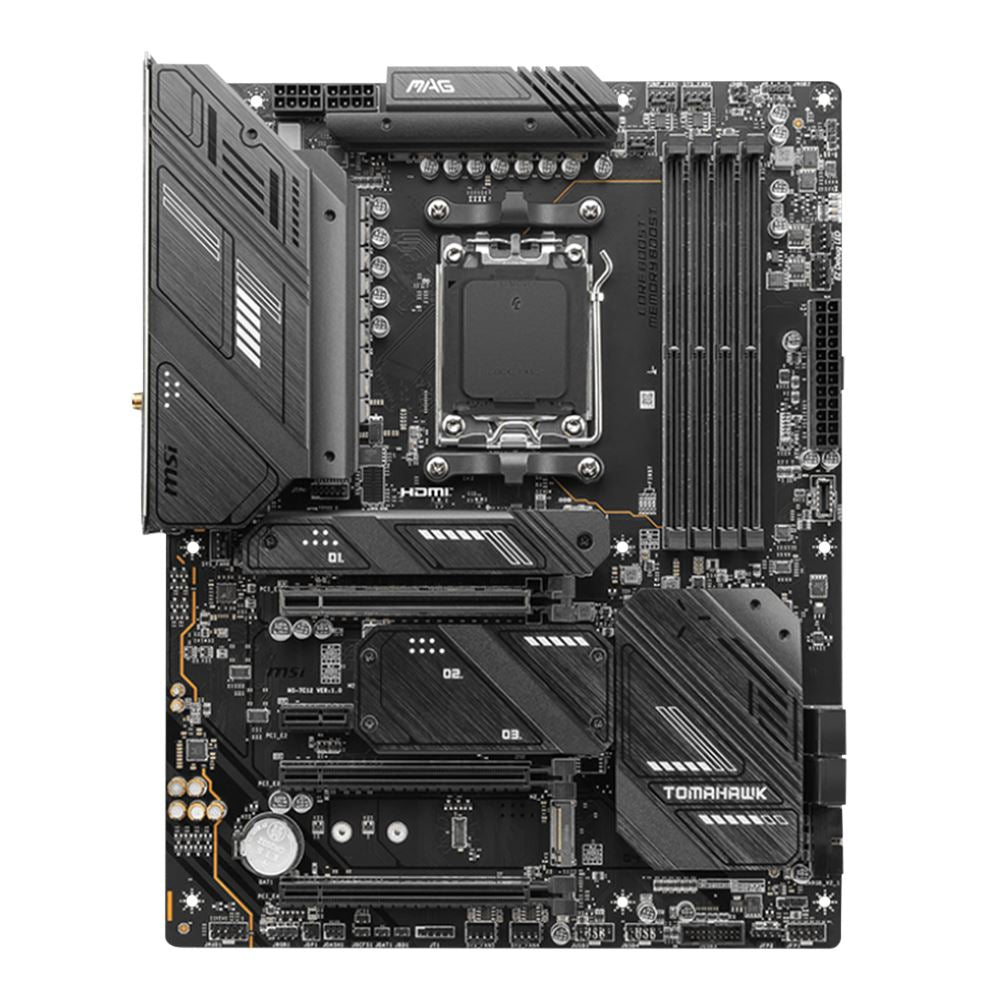

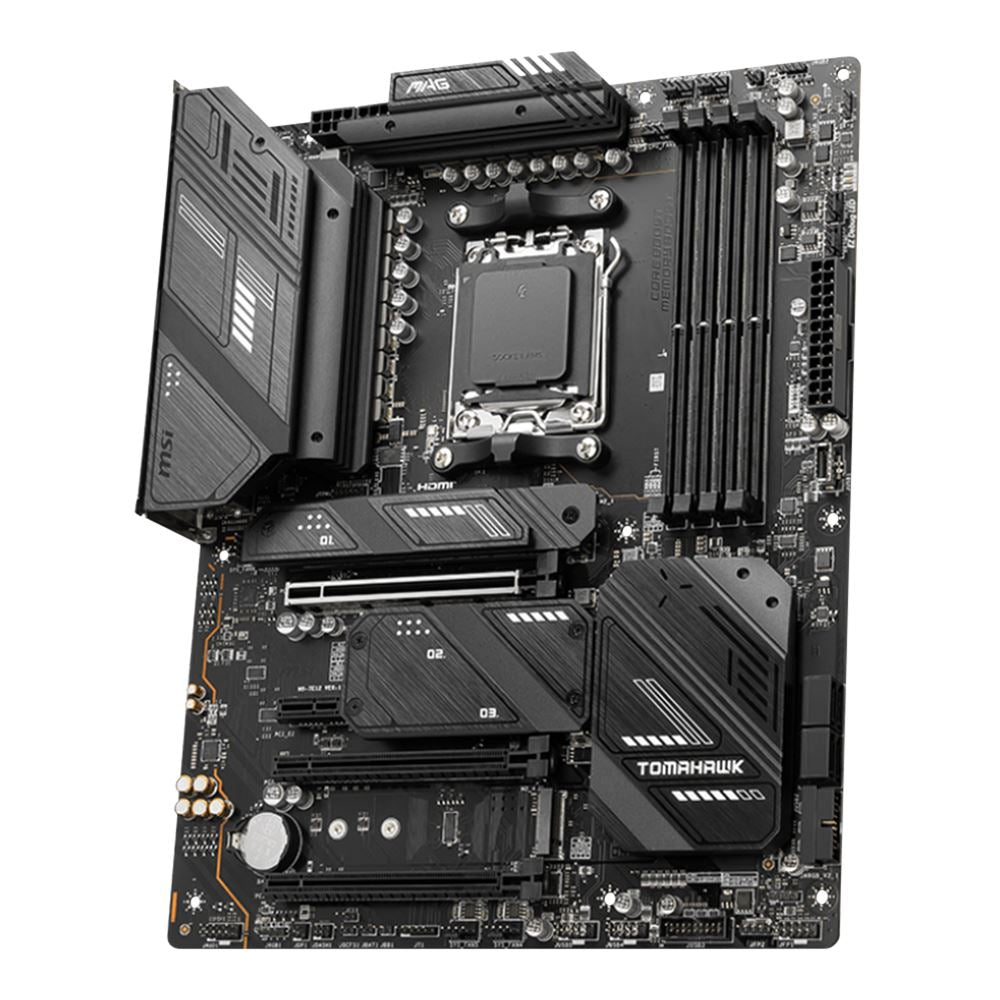

MSI X670E MAG Tomahawk WiFi AMD AM5 ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

• Packaging: Retail
• Chipset: AMD X670E
• CPU Support: AMD Ryzen
• Socket Type: AM5

• ECC: Non-ECC, Non-Registered
• Memory Type: DDR5-4800
• Memory Speeds Supported: 6000+(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
• Memory Slots: 4 x 288pin DIMM
• Memory Channel Support: Dual Channel
• Max Memory Supported: 192GB
• Maximum Memory Supported Per Slot: 48GB
• Supported Memory Technologies: Non-ECC Memory Supported, Unbuffered Memory Supported

• Onboard Graphic Chipset: Requires CPU with Integrated Graphics

• M.2 Port Type: 2280, 22110
• SATA Express: 4 x M.2 Socket 3, M Key
• SATA 6Gb/s: 4
• RAID Support: RAID 0, RAID 1, RAID 10

• Audio Chipset: Realtek ALC1200
• Audio Channels: 7.1

• WiFi Support: M.2 Slot
• LAN Chipset: Realtek RTL8125BG
• LAN Speed: 10/100/1000/2500Mbps
• Wireless LAN Chipset: AMD Wi-Fi 6E
• Wireless Technology: 802.11b/g/a, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), Bluetooth v5.3

• PCI Express 4.0 x16: 2
• PCI Express 5.0 x16: 1
• PCI Express x1: 1

• LAN Ports: 1 x 10/100/1000/2500 RJ-45 LAN
• Audio Ports:
  • 1 x 3.5 mm Microphone
  • 1 x 3.5 mm Line-In
  • 1 x 3.5 mm Rear Speaker
  • 1 x 3.5 mm Subwoofer
  • 1 x 3.5 mm Line-Out
• Specialty Ports: 2 x WiFi Antenna Ports
• USB 3.1:
  • 4 x USB 3.2 (Gen 1 Type-A)
  • 1 x USB 3.2 (Gen 2 Type-C)
  • 1 x USB 3.2 (Gen 2x2 Type-C)
  • 2 x USB 3.2 (Gen 2 Type-A)
• Video Connectors: 1 x HDMI 2.1, 1 x DisplayPort 1.4
• Digital Audio: 1 x Optical

• Headers:
  • 1 x CPU Fan Header
  • 1 x Water Pump Header
  • 6 x System Fan Header
• USB:
  • 2 x USB 2.0 Headers (4 Ports)
  • 2 x USB 3.2 Gen 1 Type-A Headers (4 Ports)
  • 1 x USB 3.2 Gen 1 Type-C Header (1 Port)
• Power Connectors:
  • 1 x 24-pin ATX Connector
  • 2 x 8-pin +12 V Connector

• Depth: 12.00 in. (305.00 mm)
• Width: 9.60 in. (243.84 mm)
• Form Factor: ATX

• Parts: 3 Years
• Labor: 3 Years

• What's in the Box: Motherboard, Manual, 2x SATA Cables, 3x M.2 Clips, Stickers and Tie Labels, Antenna, M.2 Plate Screw
